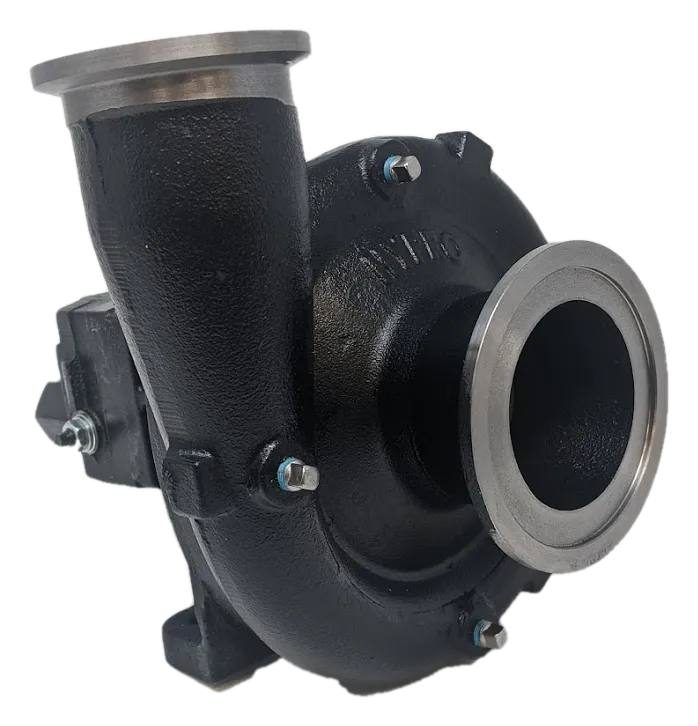

9306C Pump Flanged M300 Inlet Flanged M220 Outlet

HM1C Hydraulic Motor Recommended Hydraulic Flow 11-13gpm

Max Flow:283gpm

Max Pressure:127gpm

Cast Iron Housing

• Hydraulic motor drive (for open center, closed center and  load-sensing systems)
• Max. fluid temperature: 140°F/60°C
• Impeller: Nylon
• Motor: internal gear gerotor
• Hydraulic ports: 1⁄2" NPT inlet, 3⁄4" NPT outlet
• Max. motor psi: 3000 (bar: 207)
• Pump seals:Standard Viton Ceramic
• Hydraulic motor seal: double-lip Teflon®
• Weight: 33 lbs./15 kg

For Flanged Connections You Will Also Need: BG-UFC0300 for the inlet M300 (FC300) and  2" Full port M220 (FC220)BG-UFC0200 Flange Clamp and Lipped Gasket for the pump outlet
